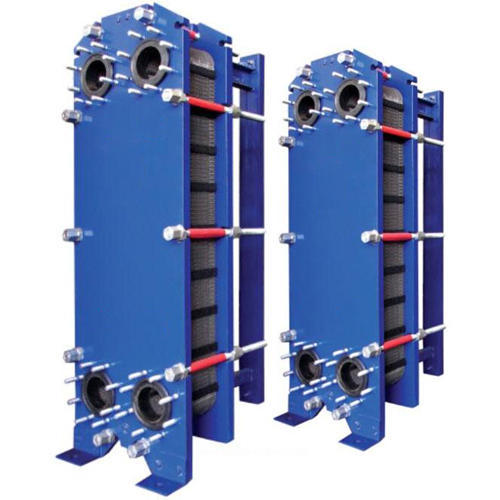

Gasketed Plate Heat Exchangers

Gasketed plate heat exchangers (GPHE) optimises heat transfer. The corrugated plates provide easy heat transfer from one gas or liquid to the other. Plates for a gasketed plate heat exchanger are with elastomeric gaskets. These seal the channels and direct the mediums into alternate channels.
Welcome to the most comprehensive range of plate type heat exchangers in the Industry.
Our Plate Type Heat Exchangers are proven to deliver designed performance in applications involving liquids, gases, steam and two-phase fluids.
GARG Micro Enterprises PHEs can be easily dismantled for inspection, cleaning, and maintenance. Another benefit is that they can be easily expanded or adapted to changed process conditions, by adding/reducing plates or sometimes replacing plates with different heat transfer characteristics.

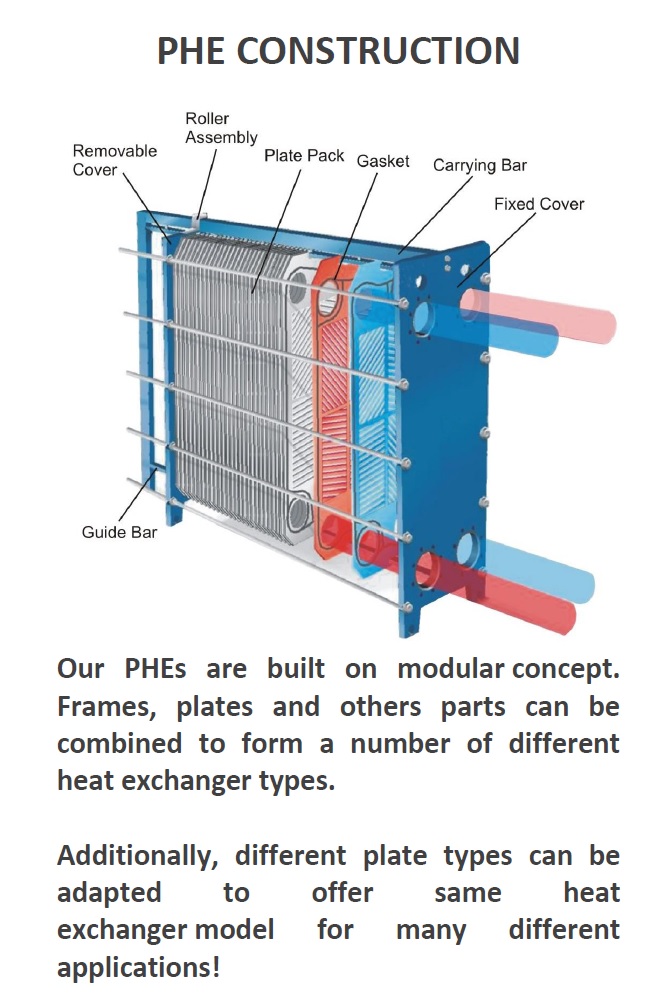

The heating and cooling fluids pass through the channel created by corrugated heat transfer plates. The corrugations and numerous contact points create a turbulent flow which increases heat transfer coefficient manifold as compared to conventional shell and tube heat exchangers. The turbulent flow also provides a 'self-cleaning effect' in fouling duties.

By using exchanger plates with different physical characteristics, the exchangers can be adapted to a wide variety of applications.

Our service applications:

Sulphuric Acid Cooling
Paint Shops
Milk and Beverage Cooling
Induction Furnace Cooling
High Frequency Welders
Hydraulic Oil Cooling, Hydraulic Presses
Solvent Condensers
Condensate Heat Recovery Systems
Closed Circuit Cooling Water Systems
Chlor Alkali Plants
Liquor Heating and Cooling
Distilleries / Ethanol Plants
Cane Juice Heating
Vegetable Oil Plants
Gear Box Oil Cooling

Product Program

Connections Sizes	DN15 to DN550
Flow Rates	< 6000 m3/hour
Working Pressure	< 25 Bar
Working Temperature	180 deg C (240 deg C for some models)
Plate Materials	SS304 / 316L, SMo254, Titanium Gr 1 / 11, Hastelloy C-276, Ni-201
Gasket Materials	NBR, EPDM, FKM, CR, HNBR, PTFE Encapsulated
Frame Materials	IS2062, SA516 Gr 60/70, SS304, SS304 Cladded
Tie-Rods, Fasteners	IS1367, SA193/SA194, ASTM A193/194
Construction Codes	Standard Engineering Practice, ASME Sec VIII Div 1, PED, U Stamp(*)
